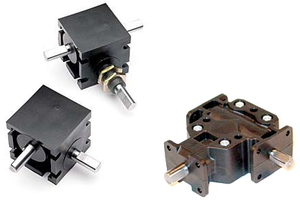

RA-400 Right Angle Gearbox

1:1 Gearboxes, Uniquely rated so you can balance Torque to RPM to Life

Calculations are based on an application factor of 1.25. They apply to a medium impact drive turning a uniform load or a uniform drive turning a moderate impact load. Life Time figures shown are for guidance only. Testing in your application is required. You will need to assess duty cycles and confirm suitability with your own calculations.



Technical Drawing

Bevel-Right-Angle-Gearbox-Technical-Drawing



General Specifications All Models
Material Aluminum / Stainless
Shaft Output Type Right Angle
Country of Origin USA
Max Input RPM 2,000
Ratio 1:1
Efficiency @ 1000 RPM 0.88%

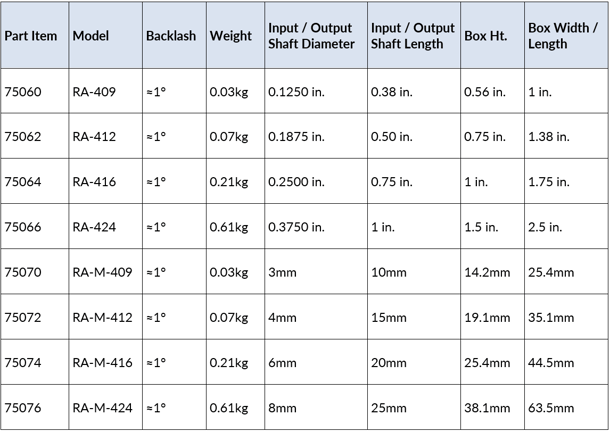

Options Chart

Part Item Model Backlash Weight Input / Output Shaft Diameter Input / Output Shaft Length Box Height Box Width / Length
75060 RA-409 ≈1° 0.03kg 0.1250 in. 0.38 in. 0.56 in. 1 in.
75062 RA-412 ≈1° 0.07kg 0.1875 in. 0.50 in. 0.75 in. 1.38 in.
75064 RA-416 ≈1° 0.21kg 0.2500 in. 0.75 in. 1 in. 1.75 in.
75066 RA-424 ≈1° 0.61kg 0.3750 in. 1 in. 1.5 in. 2.5 in.
75070 RA-M-409 ≈1° 0.03kg 3mm 10mm 14.2mm 25.4mm
75072 RA-M-412 ≈1° 0.07kg 4mm 15mm 19.1mm 35.1mm
75074 RA-M-416 ≈1° 0.21kg 6mm 20mm 25.4mm 44.5mm
75076 RA-M-424 ≈1° 0.61kg 8mm 25mm 38.1mm 63.5mm








Printable Spec Sheets

Click on the image below to download a pdf of each product flyer

RA-409

RA-409



RA-412

RA-412



RA-416

RA-416



RA-424

RA-424










Made-in-usa-lakecounty-01

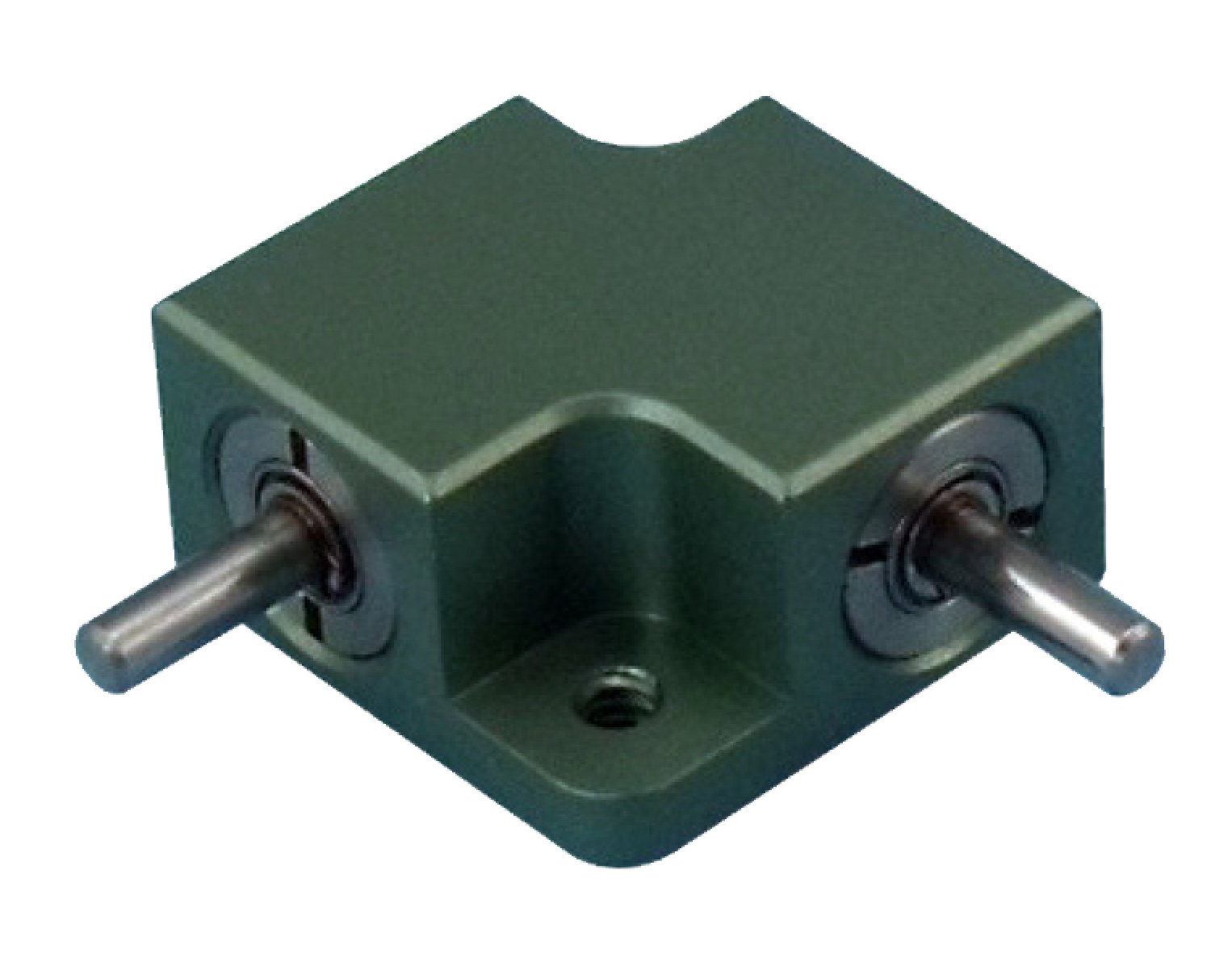

Bevel-Right-Angle-Gearbox

View our 3D Catalog of the RA Mini Right Angle Gearboxes
