About the RA-300 Right Angle Gearbox

  • 1:1 and 2:1 Ratios
  • Aluminum Housing

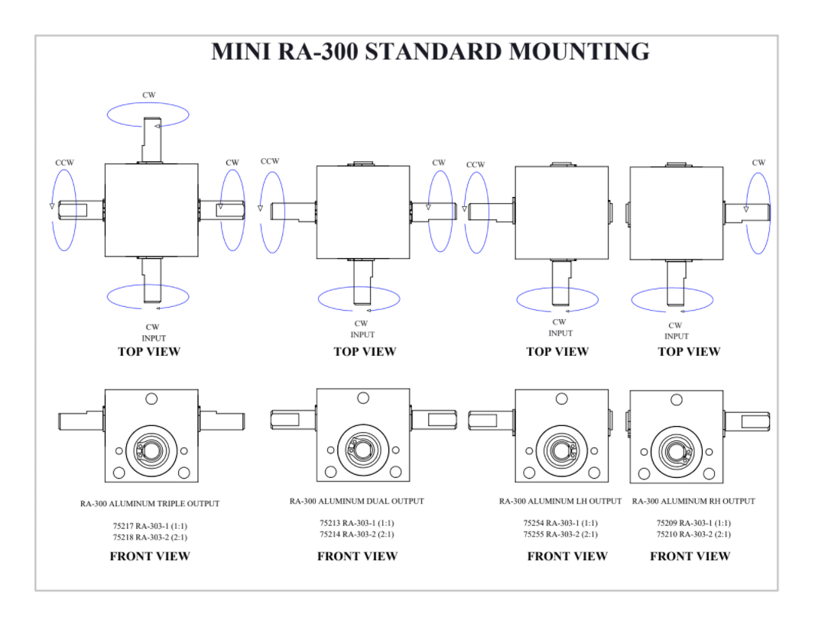

  • Standard or Panel Mount
  • Single Input - Single Output
  • Single Input - Dual Output
  • Left and Right Hand Output Shafts
  • Clockwise & Counter Clockwise Rotation
  • OEM & Quantity Discounts
  • Engineering Support

Design Features

  • Size: 1.25" high x 1.25" wide x 1.25" deep, not including shaft length
  • Gears: Hardened steel helical gears
  • Lubrication: Permanent
  • Input and output steel shafts: 1/4 " OD (Stainless available - Consult Factory)
  • Bearings: sealed ball bearing
  • Weight: 6 ounces
  • RPM: Rated at 1800 RPM maximum
  • Horsepower: Rated for 1/8 HP continuous duty
  • Customized options: Available subject to design review and approval



Input/Output  All Models
Single Input Shaft  0.250 Dia solid
Single or Double Output Shaft  0.250 Dia solid
Shaft Bearing Radial Ball Bearing



Performance Specifications         All Models
Gearing  Helical  (hardened steel)
Maximum Input Speed  1800 rpm
Gear Ratio  1:1 ratio 2:1 ratio
Rated Input Hp at 1800 1/8 1/8
Output Torque (inch LBS) 4.4 8.8



General Specifications          All Models
Weight-Aluminum Housing  6.08 oz. (.38Lbs) (0.17 Kg)

Options Chart for 1:1 and 2:1

Description Ratio Rotation
Output Shaft
Rotation
Input Shaft

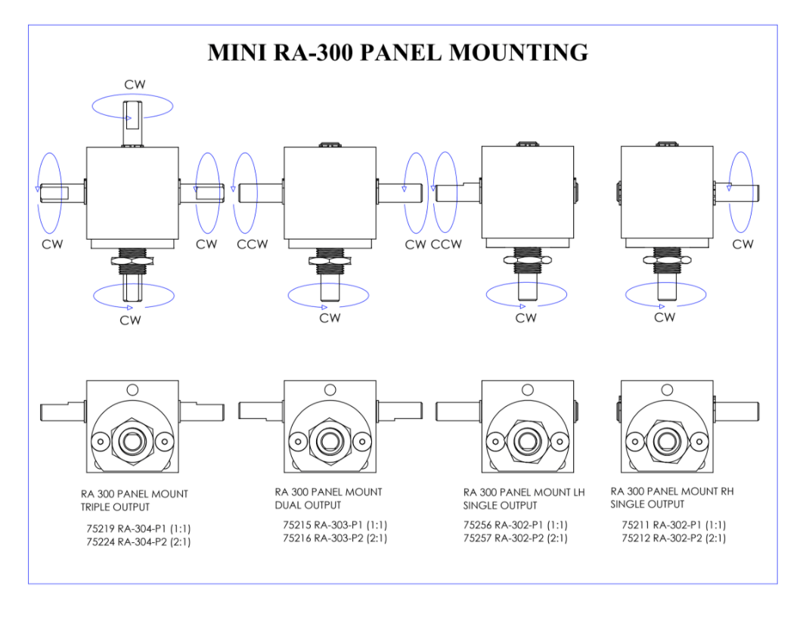

Panel Mount Mounting
Variations
Housing Gear Type Shaft
Bearings
RA-302-1
MINI RIGHT ANGLE
1:1 CW CW No RH Alum Helical Ball Bearing
RA-302-2
MINI RIGHT ANGLE
2:1 CW CW No RH Alum Helical Ball Bearing
RA-302-P1
MINI RIGHT ANGLE
1:1 CW CW Yes RH Alum Helical Ball Bearing
RA-302-P2
MINI RIGHT ANGLE
2:1 CW CW Yes RH Alum Helical Ball Bearing
RA-303-1
MINI RIGHT ANGLE
1:1 CW CW No Dual Alum Helical Ball Bearing
RA-303-2
MINI RIGHT ANGLE
2:1 CW CW No Dual Alum Helical Ball Bearing
RA-303-P1
MINI RIGHT ANGLE
1:1 CW CW Yes Dual Alum Helical Ball Bearing
RA-303-P2
MINI RIGHT ANGLE
2:1 CW CW Yes Dual Alum Helical Ball Bearing
RA-302-1
MINI RIGHT ANGLE
1:1 CCW CW No LH Alum Helical Ball Bearing
RA-302-2
MINI RIGHT ANGLE
2:1 CCW CW No LH Alum Helical Ball Bearing
RA-302-P1
MINI RIGHT ANGLE
1:1 CCW CW Yes LH Alum Helical Ball Bearing
RA-302-P2
MINI RIGHT ANGLE
2:1 CCW CW Yes LH Alum Helical Ball Bearing

 Gearboxes in stock.jpg

right angle gearboxes
