Worm Gear Reducers - SW-3 & SW-4 Miniature Right Angle

General Specifications	All Models
Housing - Machined Aluminum	0.25 lb (0.11 kg)
Shaft Bearing	Oil Impregnated Bronze

Options Chart for 1:1 and 2:1

Model	Part Number	Description	Ratio	Output Shaft Diameter	2D Drawing
SW3-5	70450	Miniature Worm Gear Speed Reducer, 5:1 Ratio, 1/4" Input Shaft, 3/16" Output Shafts	5:1	0.1873	click here for drawing
SW3-10	70451	Miniature Worm Gear Speed Reducer, 10:1 Ratio, 1/4" Input Shaft, 3/16" Output Shafts	10:1	0.1873	click here for drawing
SW3-20	70452	Miniature Worm Gear Speed Reducer, 20:1 Ratio, 1/4" Input Shaft, 3/16" Output Shafts	20:1	0.1873	click here for drawing
SW4-5	70460	Miniature Worm Gear Speed Reducer, 5:1 Ratio, 1/4" Input Shaft, 1/4" Output Shafts	5:1	0.2497	click here for drawing
SW4-10	70461	Miniature Worm Gear Speed Reducer, 10:1 Ratio, 1/4" Input Shaft, 1/4" Output Shafts	10:1	0.2497	click here for drawing
SW4-20	70462	Miniature Worm Gear Speed Reducer, 20:1 Ratio, 1/4" Input Shaft, 1/4" Output Shafts	20:1	0.2497	click here for drawing

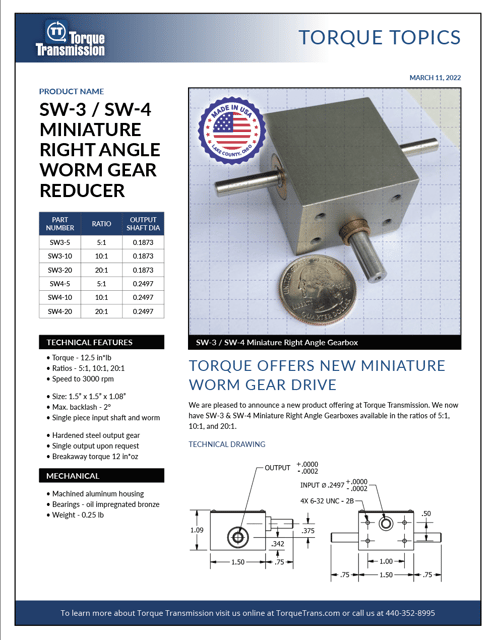

Torque Transmission's SW-3 & SW-4 miniature right angle worm gearbox speed reducers offer precise torque control and efficient power transmission in a compact design. These worm gearbox speed reducers are engineered for reliable performance and built with high-quality materials for a variety of industrial applications.

Mechanical Features

The SW-3 & SW-4 miniature right angle worm gearbox speed reducers are designed with the following mechanical features:

Machined aluminum housing
Bearings - oil impregnated bronze
Weight - 0.25 lb.

Industrial Applications

Our SW-3 & SW-4 miniature right angle speed reducers are designed with worm gears, which provide efficient power transmission and operate quietly and smoothly. The durable housing protects the gearbox from wear and tear, ensuring consistent and reliable operation. These worm gearboxes are available in a range of sizes and ratios, making them suitable for a variety of applications.

Robotics
Medical devices
Office equipment
Appliances
Automotive
And many more

Technical Features

The SW-3 & SW-4 miniature right angle worm gear speed reducers are designed with the following technical features:

Torque - 12.5 in lbs. maximum input torque for all ratios
Ratios - 5:1, 10:1, 20:1
Speed to 3000 rpm
Size - 1.5” x 1.5” x 1.08”
Max. backlash - 2°
Single piece input shaft and worm
Hardened steel output gear
Single output upon request
Breakaway torque 12 in oz

Your Partner in Worm Gearbox Speed Reducers

Whether you need to transmit power in tight spaces or require precise torque control, Torque Transmission's SW-3 & SW-4 miniature right angle worm gearbox speed reducers offer a dependable solution. With their high-quality engineering and materials, these gearboxes provide reliable performance and exceptional durability. Call us at 440-352-8995 or contact us here for a quote today!
