worm gear speed reducer, SW-1S


 Model SW-1S (Solid Shaft) Speed Reducer Detailed Drawing







Request a Quote - Gearboxes

Request a Multi-Ribbed Pulley Prototype

View our 3D Catalog of the SW-1 Worm Gear Speed Reducer

The Latest on our Blog

Torque Transmission Right Angle Gearbox for Robot Used in "Smart" Assistive Wheelchair

Applied Resources is a manufacturer of The Raptor, the first commercially available, FDA-approved “Smart” Assistive Robot. The Phybotics Division of Applied Resources Corp. introduced the Raptor...Read more

Right Angle Gear Boxes Mirror Images Save Time on Design

Sometimes you need a right angle gearbox set that are mirror images like one of our customers that needed one left hand and one right hand, on either side of a conveyor belt. Torque Transmission's...Read more

Large Diameter Thrust Bearings

Designed to permit motion between two parts while supporting an axial load, thrust bearings  need to combine both strength and bearing life.  Most thrust bearings use all metal fabrication,...Read more

Non Corrosive Roller Chain Sprockets

The Importance of Construction Material Torque Transmission roller chain sprockets are constructed with a glass reinforced nylon body. Glass reinforced nylon provides the overall design strength and...Read more

Round Belt Pulleys

From lathes to power tools, round belt pulleys are often found in applications where high strength to weight ratios are needed. Designed for Excellence Our round belt pulleys are designed for long...Read more

  • Rugged Housing: Compression-molded glass-fill polyester
  • Compact Size and light weight
  • Ratios Available: from 3.5:1 to 60:1
  • Lubrication: Supplied factory lubricated with grease
  • Custom options available

Worm Gear Speed Reducer Performance Specifications - All Models

Performance Specifications
Gearing Worm Gear
Maximum Input Speed 1,800 rpm
Gear Ratio 3.5:1 10:1 15:1 20:1 30:1 40:1 48:1 60:1
Rated Input
Hp at 1800 rpm
0.84 0.33 0.27 0.22 0.15 0.10 0.09 0.075

Rated Output
Torque lbs-inch

102 102 102 105 120 112 96 75

Output Torque Efficiency Chart

Click here Click here Click here Click here Click here Click here Click here Click here

Output Torque/RPM Curve

Click here Click here Click here Click here Click here Click here Click here Click here



Input/Output Configurations
Double Input Shaft 0.3125 Dia solid
Single Output Shaft Solid 1/2 Dia
  Hollow 5/8 ID
Input Shaft Bearings Sintered Bronze
Output Shaft Bearings Sintered Bronze



General Specifications
Lubrication Grease
Weight 1.75 Lbs (0.8 Kg)
SW-1S Dimension Chart Click Here

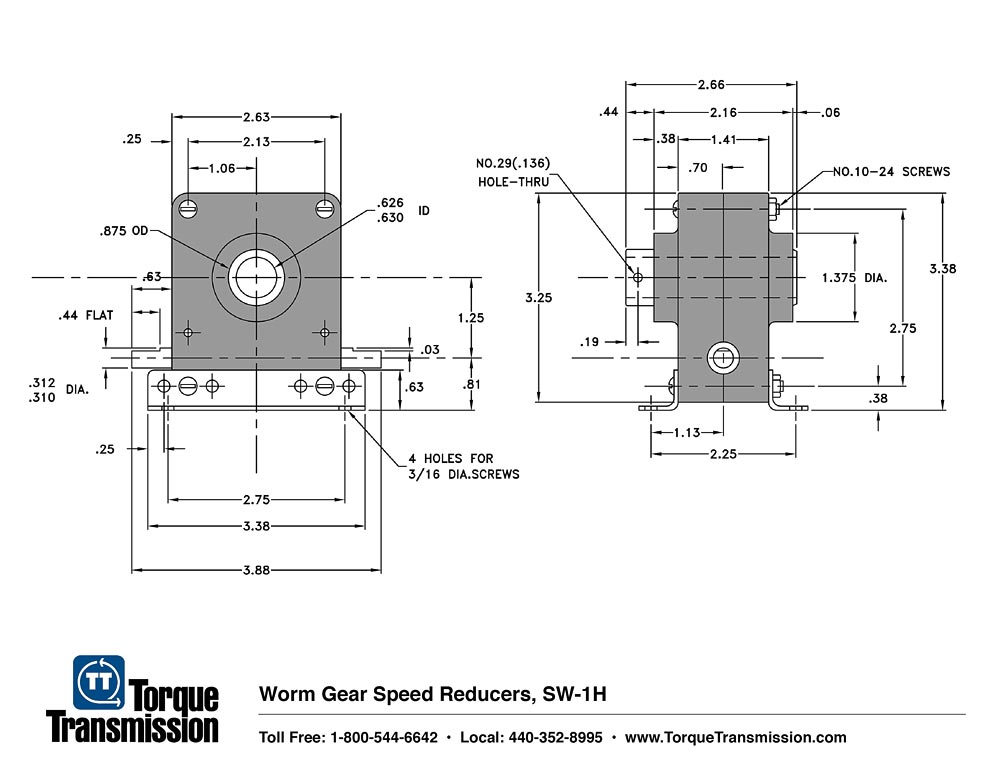

SW-1H Dimension Chart Click Here
Reducer Mounting Configuration Chart Click Here
Download 3D Drawing SW-1 Click Here
