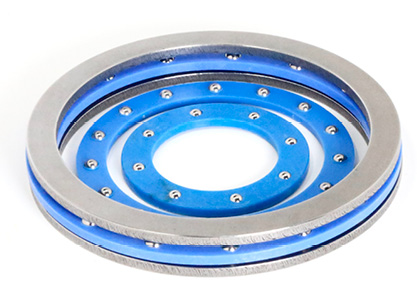

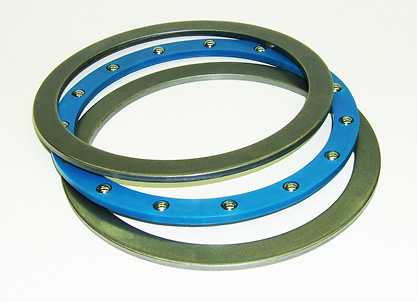

These bearings are designed to replace large diameter roller thrust bearings for light duty and low RPM industrial applications. We manufacture our thrust bearings in inch measurements from 2.0" ID - 5.5" OD in 1/2 inch increments
Typical applications include advertising signage, rotating tables, workstations, marine hardware, point of purchase displays and hydraulic valves.
Cost Saving Features|
Large Diameter Thrust Bearing Speed and Load Ratings (in Pounds)
|
||||||||||
|
Bearing
Number |
I.D.
(inches) |
O.D.
(inches) |
Thickness
(inches) |
Ball Circle
(inches) |
Ball
# |
Ball Dia.
(inches) |
Static Load |
Dynamic Loading
|
||
|
0-15 RPM
|
100 RPM
|
250 RPM
|
500 RPM
|
|||||||
|
R-200
R-250 R-300 R-350 |
2.0
2.5 3.0 3.5 |
3.0
3.5 4.0 4.5 |
0.15
0.15 0.15 0.15 |
2.50
3.00 3.50 4.00 |
12
14 15 15 |
0.2500
0.2500 0.2500 0.2500 |
400#
500# 500# 550# |
212#
265# 265# 291# |
170#
212# 212# 233# |
128#
160# 160# 176# |
|
R-400
R-450 R-500 |
4.0
4.5 5.0 |
5.0
5.5 6.0 |
0.20
0.20 0.31 |
4.50
5.00 5.50 |
12
12 15 |
0.3125
0.3125 0.3125 |
575#
575# 650# |
305#
305# 344# |
244#
244# 275# |
184#
184# 208# |
